Helty is an innovative company specialising in the development of smart solutions for heat recovery ventilation and indoor comfort with air filtration.


SKU :
1VMC02011
100% original guarantee
Return within 30days
Fast delivery

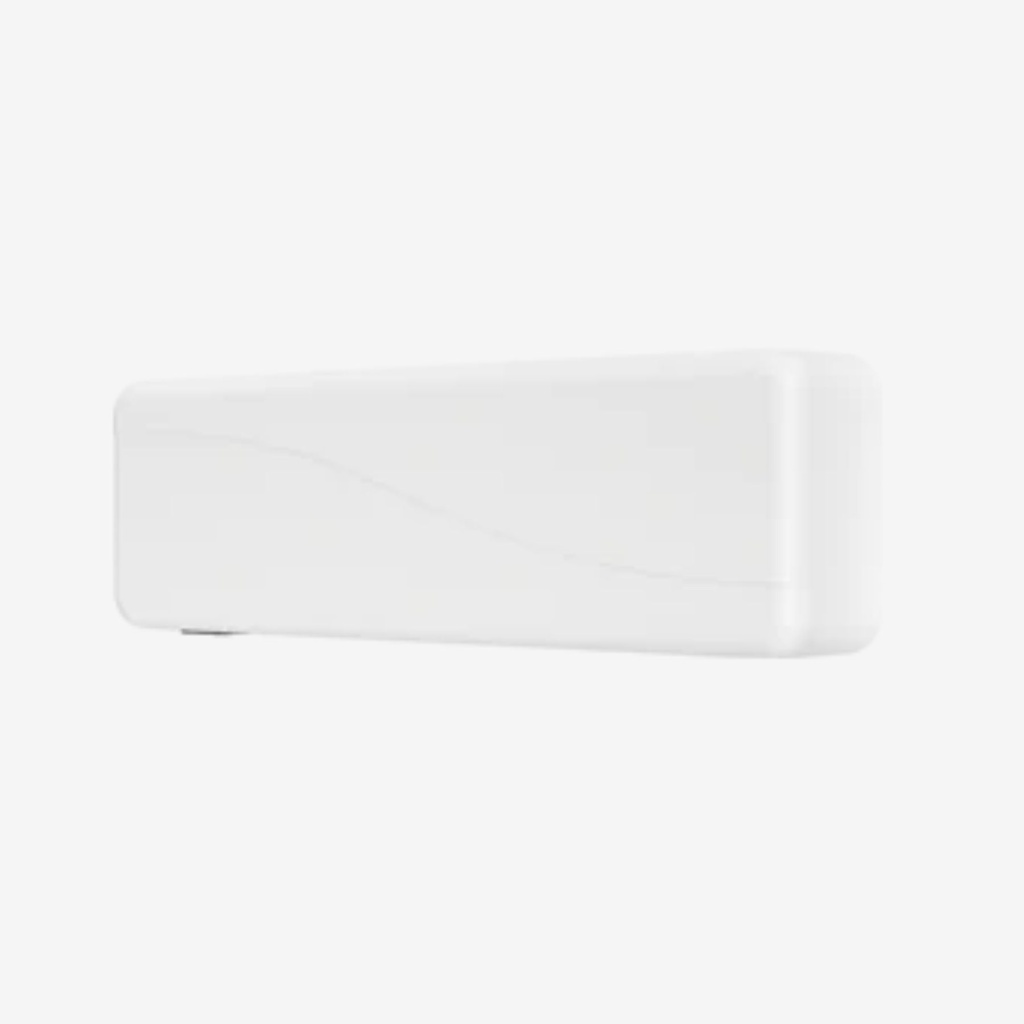

HRV retrofit solution for residential and small office spaces


A new addition to the Helty wall-mounted range, FlowULTRA represents the perfect evolution of HRV retrofit technology for medium-sized rooms, open spaces, and small offices where the need for proper air exchange is crucial in recently renovated contexts, while maintaining the energy efficiency achieved through building envelope insulation


88% thermal recovery efficiency
19.5 dB sound pressure level
120 m3/h maximum airflow
Constantly clean air with F7/G1 filters​


A solution designed to counteract condensation and mold issues and meet air hygiene requirements in medium-sized rooms, small offices, professional studios, and medical practices.

Increased Airflow Capacity and Easy Installation


Flow ULTRA is the new continuous dual-flow ventilation unit from Helty, designed to serve individual rooms with adjustable airflow rates ranging from 15 to 120 m3/h. This decentralized HRV unit can be installed with two 100 mm diameter core drillings on the perimeter wall and comes with a standard white ABS cover for seamless aesthetic integration with the existing environment.

High Filtration Capacity and Thermal Efficiency


The continuous replacement of exhaust air with fresh air, combined with external air filtration using an F7 filter, creates a healthier and more comfortable environment by eliminating dust, odors, spores, and pollen. Energy savings are further enhanced by the enthalpy heat exchanger with efficiency up to 88%.

Available in Standard, PLUS, and ELITE Versions

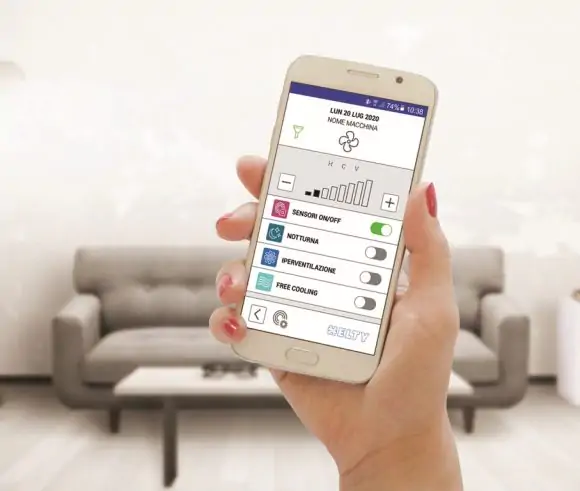

All FlowULTRA models come standard with an infrared remote control for unit management. The Plus version is enhanced with the Air Guard app, equipped with a humidity sensor for automatic ventilation operation. The flagship model, FlowULTRA Elite, is tailored for those most sensitive to indoor pollution: it also monitors CO2 and VOC levels, automatically adjusting the airflow rate to ensure constant air hygiene.

Brand Helty
Airflow 15/30/45/60/80/120 m3/h
Power consumption 3/6/9/13/23/55 W
Supply Voltage 230 V AC
Operating voltage 24 V DC
Dimensions 1000 x 320 x 180 mm
Sound pressure level 19.5/24.5/31.5/36.5/43.5/51.5 dB(A)
Facade noise abatement 45 dB
Weight 14 kg
