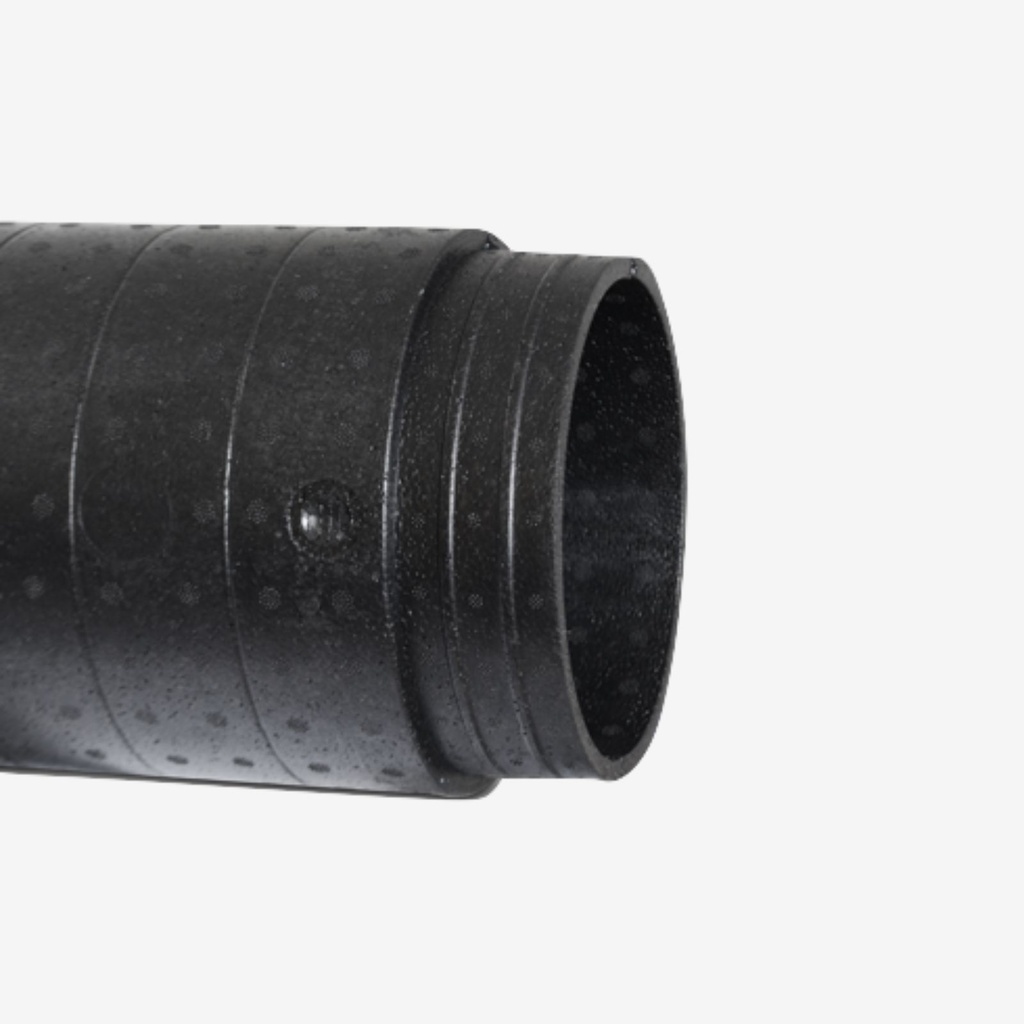

EPP Duct pipe 1m, D200 mm, Thickness 15 mm

Description:

Polypropylene (PP) is a plastic material that offers significant ecological benefits, making it ideal for modern ventilation systems. Expanded polypropylene (EPP), used in the production of this duct, combines recyclability, lightweight properties, and excellent insulation performance.

The EPP duct, measuring 1 meter in length and 200 mm in diameter, is designed to eliminate the need for additional insulation, prevent thermal bridging, and meet energy efficiency and sustainability requirements.

Key features and benefits:

• Thermal Insulation: With a thermal conductivity of λ=0.039 W/m*K, it minimizes heat loss and improves the efficiency of the ventilation system.
• Acoustic Insulation: The EPP material effectively dampens noise and vibrations, enhancing indoor acoustic comfort.
• Durable Construction: Its robust and resistant structure ensures long-term reliability and protection against mechanical damage.
• Lightweight Design: The low weight of the material facilitates handling, transport, and installation.
• Eco-Friendly Solution: Polypropylene is fully recyclable, has a low carbon footprint, and allows for responsible waste management.
• High Airtightness: The duct achieves airtightness class C according to EN 12237, minimizing air leakage.
• Moisture and Chemical Resistance: Suitable for applications with high humidity or exposure to chemical substances.

Technical specifications:

• Wall Thickness: 15 mm
• Thermal Conductivity: 0.039 W/m*K
• Airtightness Class: C (according to EN 12237)
• Surface Roughness: 0.077 mm

Applications in ventilation systems:

• Heat Recovery Systems: Its insulating properties minimize heat loss and prevent condensation near heat recovery units.
• Passages through Unheated Areas: Ensures stable air temperature when passing through cold zones.
• Sections with High Acoustic Requirements: Reduces noise generated by fans or air movement.
• Hygienic Applications: The smooth surface and moisture resistance reduce the risk of dirt accumulation and mold formation.

Installation and compatibility:

The EPP duct is compatible with ventilation system components such as heat recovery units, distribution boxes, and air valves. Its integrated connection system (female-male) enables quick and secure assembly without additional connecting elements.  The EPP duct system is compatible for integration with the SPIRO system.

The EPP duct represents a modern and efficient solution for ventilation systems that require high energy efficiency, easy installation, and long-term reliability. This material is ideal for anyone seeking a high-quality, and practical solution for air distribution.
